PowerSyntax Basic panel connectors - 480amp & 750 amp - Powerlock compatible

Basic panel
connector

Panel Source or Panel Drain

Basic panel
connector

Panel Source or Panel Drain

480 or 750 amp

  • A classic
    that never stops looking ahead.

    A classic
    that never stops looking ahead.

    Our Basic panel connector is thought for someone who faces new challenges on a daily basis and designed with the reliability of a product tested by 16 years of work on the field and tens of thousands of connectors manufactured.

  • PowerSyntax Basic panel source connector - 480amp & 750 amp

    Panel source

    Panel source

    Specific housing for protection cap lacing moulded on the plastic body of the flange. IP2X finger protection to prevent touching live parts. Contact to housing retention through flame-retardant UL94-VO plastic cotter pin. No special assembling tools needed. Secondary locking safety system. Front or rear panel mount. Optional M5 threaded fittings available for rear panel mount. Permanent phase / line identification and safety information markings embossed on connector’s shell. No additional information stickers applied. SPX 4 480amp  and SPX 7 750amp versions available. M12 contacts with M12 threaded post or M12 threaded hole. Set screw, Crimp or EasiLug contacts available or request.Threaded body with thermoplastic backshell and IP68 cable gland available. For secondary lock release, use SyntaxLock or standard release key.

  • PowerSyntax Basic panel drain connector - 480amp & 750 amp

    Panel drain

    Panel drain

    Specific housing for protection cap lacing moulded on the plastic body of the flange. IP2X protection through patented drain contact lock.Contact to housing retention through flame-retardant UL94-VO plastic cotter pin. No special assembling tools needed. Secondary locking safety system. Front or rear panel mount. Optional M5 threaded fittings available for rear panel mount. Permanent phase / line identification and safety information markings embossed on connector’s shell. No additional information stickers applied. SPX 4 480amp  and SPX 7 750amp versions available. M12 contacts with M12 threaded post or M12 threaded hole. Set screw, Crimp or EasiLug contacts available or request. Threaded body with thermoplastic backshell and IP68 cable gland available.For secondary lock release, use SyntaxLock or standard release key.

  • Drain contact
    IP2X safety lock

    Drain contact
    IP2X safety lock

  • Our innovative mechanical lock prevents improperly pushing the contact inwards with fingers or tools !

    Our innovative mechanical lock prevents improperly pushing the contact inwards with fingers or tools !

  • New threaded IP2X protection

    New threaded IP2X protection

    New threaded IP2X protection

    For source contacts

    For source contacts

    Thanks to this new design, a portion of the source contact's insulating cap will remain in its position on top of the source contact even in case of damage, improving the overall safety for the user.

  • A complete range
    of contacts

    A complete range
    of contacts

    for panel-mount connectors

    for panel-mount connectors

    The PowerSyntax Panel connectors are equipped with different contact types, depending on current rating (480amp or 750amp) and cable terminations.

  • Our solutions for copper cables

    Our solutions for copper cables

  • M12 threaded post

    M12 threaded post

    M12 threaded post

    M12 threaded-post contact, up to  480 amp or 750 amp (all-copper contact). Lug terminal retained through M12 nut. Used as a standard on SPX 4 and SPX 7 panel-mount connectors.

  • M12 threaded hole

    M12 threaded hole

    M12 threaded hole

    M12 threaded-hole contact, up to 480 amp or 750 amp (all-copper contact). Lug terminal retained through M12 bolt. Used as an alternative for M12 threaded-post contacts on SPX 4 and SPX 7 panel-mount connectors.

  • Set screw contact

    Set screw contact

    Set screw contact

    Set-screw contact, up to 480amp. Cable retained through reduction sleeve (25-150 mm²) and set screws suitable reduction sleeve is included. Used as a standard on SPX/SPZ 480amp line source/drain connectors, the set screw contact is also available for panel-mount connectors on request.

    • Cable section (class 5)25 mm235 mm250 mm270 mm295 mm2120 mm2150 mm2
      Recommended sleeve adapter (p/n)SPX-RED025SPX-RED035SPX-RED050SPX-RED070SPX-RED095--
      Cable strip length 33 mm33 mm33 mm33 mm33 mm33 mm33 mm
      Set screw tightening torque12Nm12Nm12Nm12Nm12Nm12Nm12Nm
      M10 hex set screw (2pcs)allen key size 5allen key size 5allen key size 5allen key size 5allen key size 5allen key size 5allen key size 5

    • ▲ close
    ▼ more info
  • Sleeve adapter system

    Sleeve adapter system

    Sleeve adapter system

    for set screw contacts

    for set screw contacts

    The ultimate solution for 25 to 95 mm² cables.

  • Crimp contact

    Crimp contact

    Crimp contact

    Crimp contact, up to 750 amp, and up to up to 300 mm² cable sections. The position and number of cable compressions vary according to the different cable sections. Cable stripping length is 42 mm.

  • SPY ComLug L

    SPY ComLug L

    SPY ComLug L

    Lug Converter

    Lug Converter

    Entirely designed and produced by Syntax, contact up to 480 amp and suitable for cable lug terminals up to 120 mm².

  • SPY ComLug L2

    SPY ComLug L2

    SPY ComLug L2

    Lug Converter

    Lug Converter

    Entirely designed and produced by Syntax, contact up to 750 amp and suitable for cable lug terminals up to 240 mm².

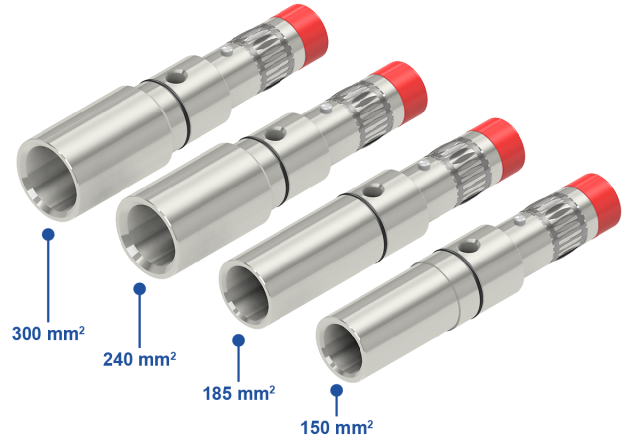

  • SPY ComLug XL

    SPY ComLug XL

    SPY ComLug XL

    Lug Converter

    Lug Converter

    Entirely designed and produced by Syntax, contact up to 750 amp and suitable for cable lug terminals up to 300 mm².

  • Lug compatibility chart

    Lug compatibility chart

    Lug compatibility chart

    Choose the right contact for your lug terminal

    Choose the right contact for your lug terminal

    Lug TypeBCable section (flex)∅id ∅ screwContact
    S25,070 - 95 mm213,512 mmL-L2-XL
    S28,595 - 120 mm215,212 mmL-L2-XL
    S31,5120 - 150 mm216,712 mmL2-XL
    S35,5150 - 185 mm219,212 mmL2-XL
    C31,0240 mm221,112 mmL2-XL
    C31,0300 mm223,712 mmXL

  • Contacts for aluminium cables

    Contacts for aluminium cables

    Panel | 480 amp

    Panel | 480 amp

  • SPY EasiLug - Bimetal

    SPY EasiLug - Bimetal

    SPY EasiLug - Bimetal

    Complete EasiLug contact with bi-metal (aluminium/copper) terminal for aluminium cable. Used as a standard on SPY EasiLug connectors for aluminium cables, this contact type is also available for panel-mount connectors on request.

  •  Contact termination

    Contact termination

    Contact termination

    tightening torque

    tightening torque


    M12 threaded post 30Nm max
    M12 threaded hole 30Nm max
    ComLug L (480A) 30Nm max
    ComLug L2 (750A) 30Nm max
    ComLug XL (750A) 30Nm max
    Set screw contact 12Nm max

  • Overall dimensions

    Overall dimensions

  • Panel drain

    Panel drain

    Panel drain

    with M12 standard threaded post

    with M12 standard threaded post

    Dimensions in mm

  • Panel source

    Panel source

    Panel source

    with M12 standard threaded post

    with M12 standard threaded post

    Dimensions in mm

  • Panel drain

    Panel drain

    Panel drain

    with M12 threaded hole

    with M12 threaded hole

    Dimensions in mm

  • Panel source

    Panel source

    Panel source

    with M12 threaded hole

    with M12 threaded hole

    Dimensions in mm

  • Panel drain

    Panel drain

    Panel drain

    with set screw contact

    with set screw contact

    Dimensions in mm

  • Panel source

    Panel source

    Panel source

    with set screw contact

    with set screw contact

    Dimensions in mm

  • Panel drain

    Panel drain

    Panel drain

    with crimp contact

    with crimp contact

    Dimensions in mm

  • Panel source

    Panel source

    Panel source

    with crimp contact

    with crimp contact

    Dimensions in mm

  • Panel drain

    Panel drain

    Panel drain

    with ComLug L

    with ComLug L

    Dimensions in mm

  • Panel source

    Panel source

    Panel source

    with ComLug L

    with ComLug L

    Dimensions in mm

  • Panel drain

    Panel drain

    Panel drain

    with ComLug L2

    with ComLug L2

    Dimensions in mm

  • Panel source

    Panel source

    Panel source

    with ComLug L2

    with ComLug L2

    Dimensions in mm

  • Panel drain

    Panel drain

    Panel drain

    with ComLug XL

    with ComLug XL

    Dimensions in mm

  • Panel source

    Panel source

    Panel source

    with ComLug XL

    with ComLug XL

    Dimensions in mm

  • Panel drain

    Panel drain

    Panel drain

    with EasiLug

    with EasiLug

    Dimensions in mm

  • Panel source

    Panel source

    Panel source

    with EasiLug

    with EasiLug

    Dimensions in mm

  • Panel mount cut-out dimensions

    Panel mount cut-out dimensions

  • Panel drain front/rear

    Panel drain front/rear

    Panel drain front/rear

    Basic version

    Basic version

    Dimensions in mm

  • Panel source front/rear

    Panel source front/rear

    Panel source front/rear

    Basic version

    Basic version

    Dimensions in mm

  • The best connectors
    deserve the best accessories.

    The best connectors
    deserve the best accessories.

    Discover how to make a great product even better

    Discover how to make a great product even better

  • SyntaxLock

    SyntaxLock

    SyntaxLock

    Patent pending

    Patent pending

    Suitable for all PowerSyntax connectors. Can be fitted or removed at any time. A simple, universal accessory. Quick and easy to install.

  • Protection caps IP67

    Protection caps IP67

    Protection caps IP67

    For IP67 waterproof protection

    For IP67 waterproof protection

    The PowerSyntax IP67 caps ensure complete waterproof protection and IP53 caps are a fast, easy way to protect connectors.
