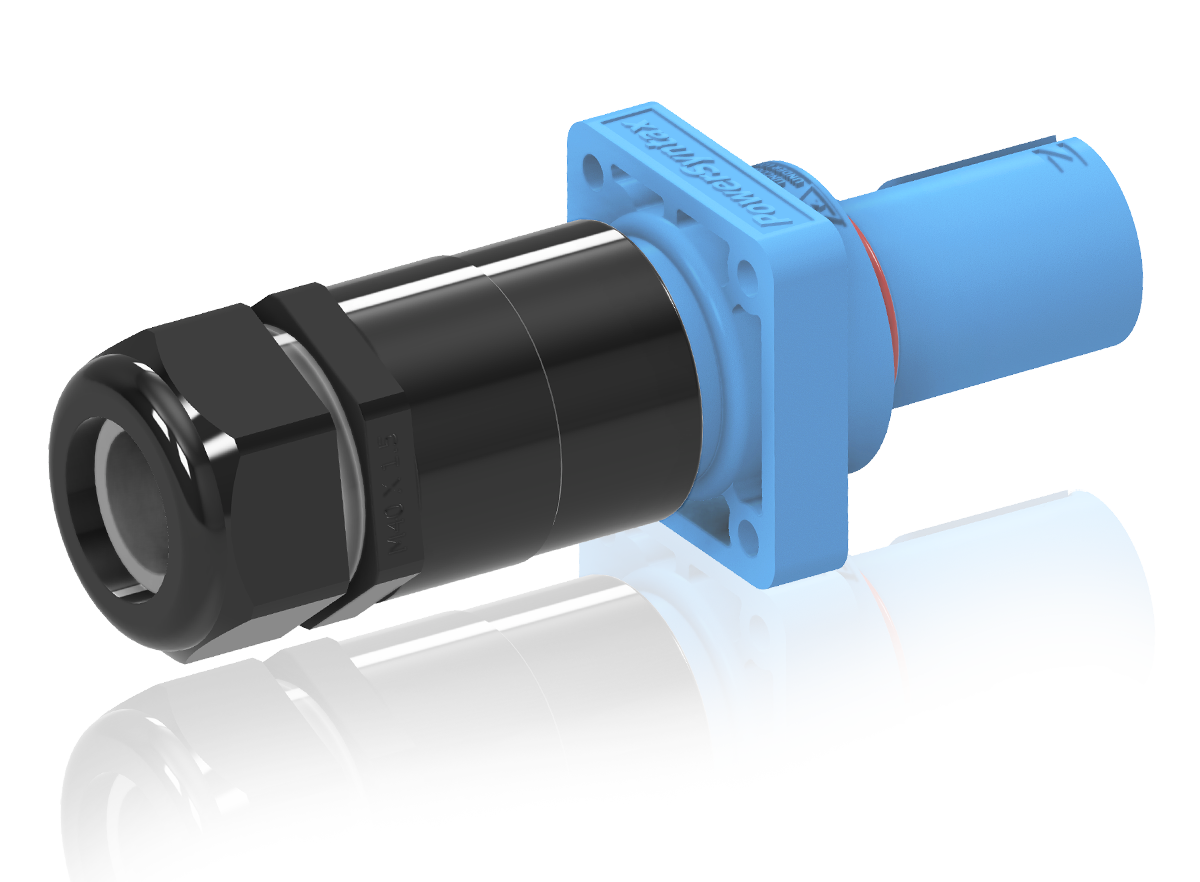

PowerSyntax Shaelter panel connectors with backshell - 480amp & 750 amp - Powerlock compatible

Shelter

Panel connector with threaded body and backshell

Shelter

Panel connector with threaded body and backshell

480 or 750 amp

  • The ultimate solution
    for your insulated panels

    The ultimate solution
    for your insulated panels

    The PowerSyntax SPX panel mount connectors are available with threaded body to fit two thermoplastic backshell variants, depending on the contact installed. As well as the backshells, this system features an IP68 cable gland and provides IP67 watertight seal at the cable clamp. The standard backshell version can be supplied with a set-screw contact terminal with reduction sleeves for 25-150 mm˛ copper cables up to 480 amp or crimp contacts for copper cables up to 300 mm˛ and currents up to 750 amp. The long backshell variant hosts our bimetal EasiLug contact, designed for aluminium cables.

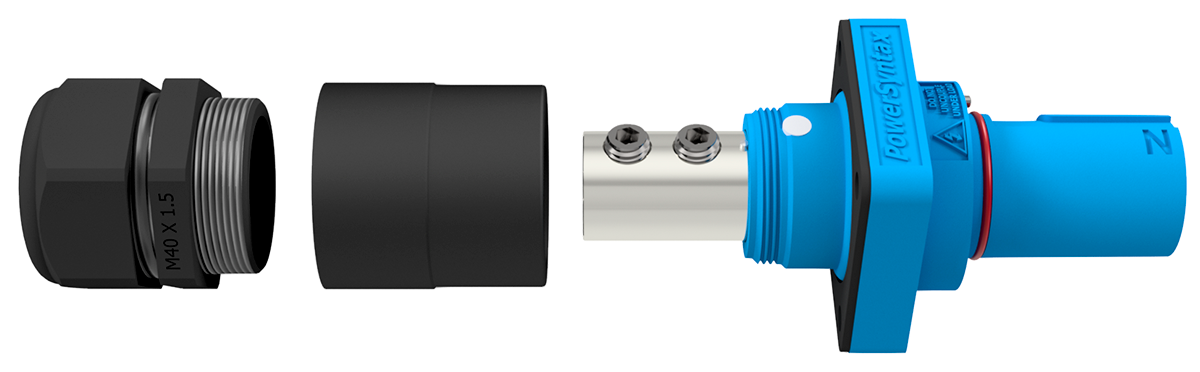

  • Standard backshell

    Standard backshell

    Contacts for copper cables

    Contacts for copper cables

  • PowerSyntax Panel connectors with backshell - Powerlock compatible

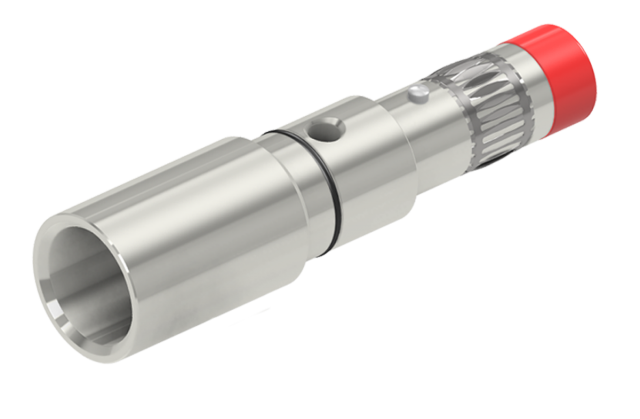

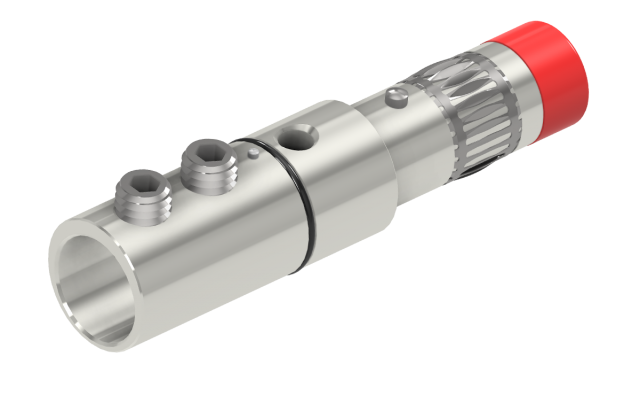

  • Set screw contact

    Set screw contact

    Set screw contact

    Set-screw contact, up to 480amp. Cable retained through reduction sleeve (25-150 mm˛) and set screws suitable reduction sleeve is included. Used as a standard on SPX/SPZ 480amp line source/drain connectors, the set screw contact is also available for panel-mount connectors on request.

    • Cable section (class 5)25 mm235 mm250 mm270 mm295 mm2120 mm2150 mm2
      Recommended sleeve adapter (p/n)SPX-RED025SPX-RED035SPX-RED050SPX-RED070SPX-RED095--
      Cable strip length 33 mm33 mm33 mm33 mm33 mm33 mm33 mm
      Set screw tightening torque12Nm12Nm12Nm12Nm12Nm12Nm12Nm
      M10 hex set screw (2pcs)allen key size 5allen key size 5allen key size 5allen key size 5allen key size 5allen key size 5allen key size 5

    • ▲ close
    ▼ Discover more

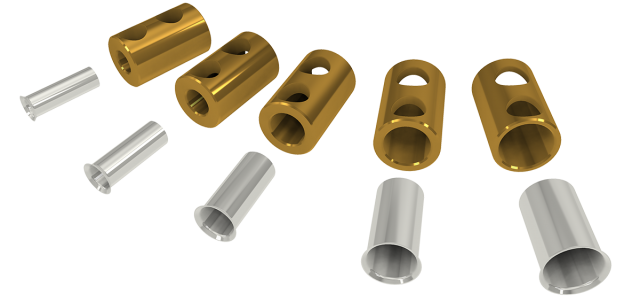

  • Sleeve adapter system

    Sleeve adapter system

    Sleeve adapter system

    for set screw contacts

    for set screw contacts

    The ultimate solution for 25 to 95 mm˛ cables.

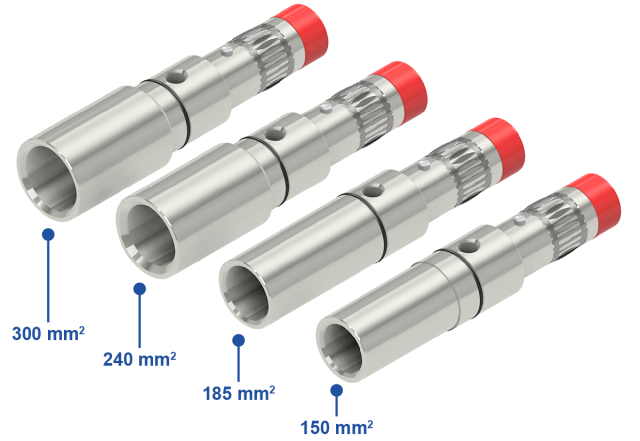

  • Crimp contact

    Crimp contact

    Crimp contact

    Crimp contact, up to 750 amp, and up to up to 300 mm˛ cable sections. The position and number of cable compressions very according to the different cable sections. Cable stripping length is 42 mm.

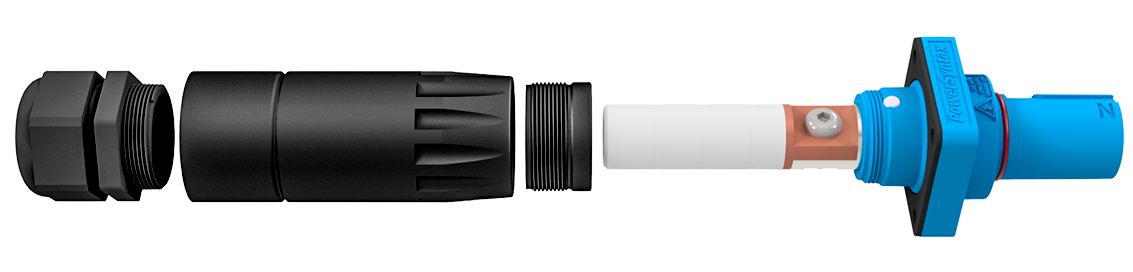

  • Long backshell

    Long backshell

    Contact for aluminium cables

    Contact for aluminium cables

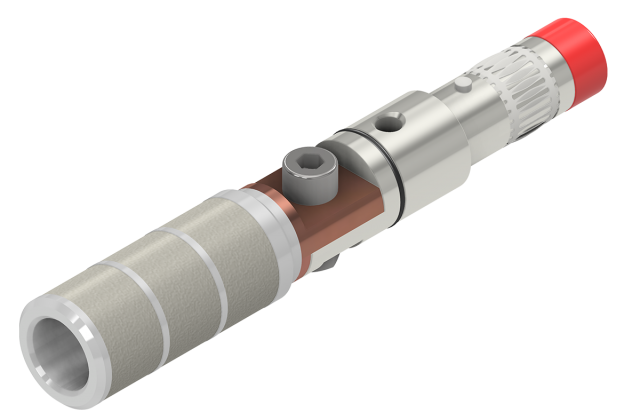

  • SPY EasiLug - Bimetal

    SPY EasiLug - Bimetal

    SPY EasiLug - Bimetal

    Complete EasiLug contact with bi-metal (aluminium/copper) terminal for aluminium cable. Used as a standard on SPY EasiLug connectors for aluminium cables, this contact type is also available for panel-mount connectors on request.

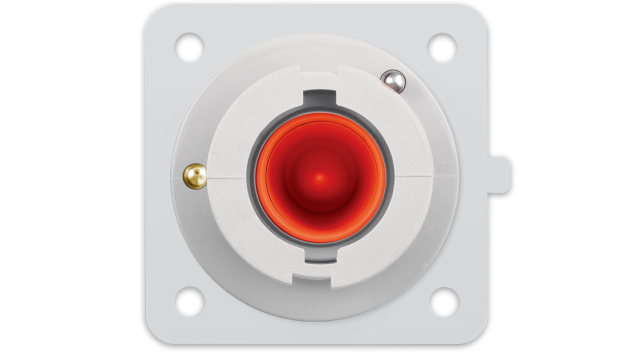

  • Drain contact IP2X
    safety lock

    Drain contact IP2X
    safety lock

  • Drain contact IP2X patented safety lock

    Our innovative mechanical lock prevents improperly pushing the contact inwards with fingers or tools !

    Our innovative mechanical lock prevents improperly pushing the contact inwards with fingers or tools !

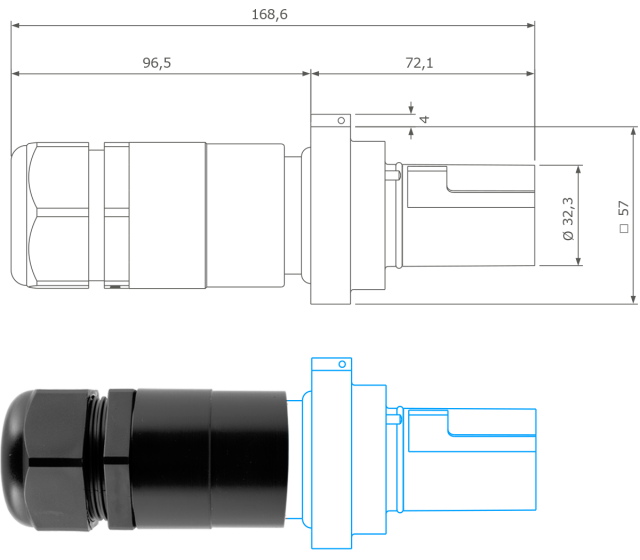

  • Overall dimensions

    Overall dimensions

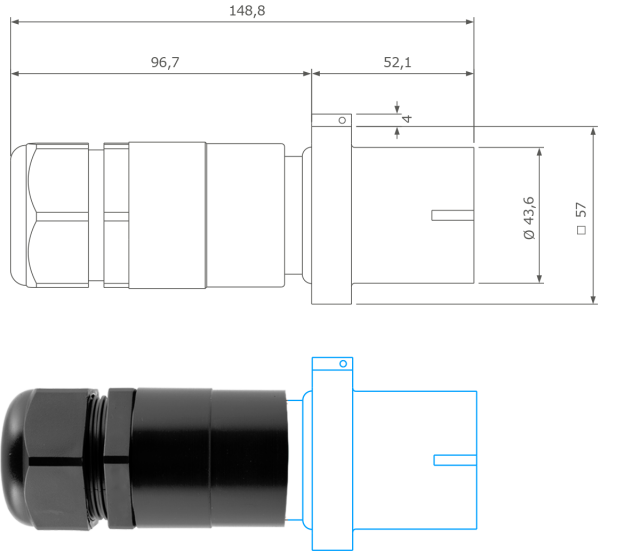

  • Panel drain connector   with standard backshell

    Panel drain connector
    with standard backshell

    Panel drain connector
    with standard backshell

    Dimensions in mm

  • Panel source connector   with standard backshell

    Panel source connector
    with standard backshell

    Panel source connector
    with standard backshell

    Dimensions in mm

  • Panel drain connector   with long backshell

    Panel drain connector
    with long backshell

    Panel drain connector
    with long backshell

    Dimensions in mm

  • Panel source connector   with long backshell

    Panel source connector
    with long backshell

    Panel source connector
    with long backshell

    Dimensions in mm

  • Panel mount cut-out dimensions

    Panel mount cut-out dimensions

  • Panel drain front/rear

    Panel drain front/rear

    Panel drain front/rear

    Basic version

    Basic version

    Dimensions in mm

  • Panel source front/rear

    Panel source front/rear

    Panel source front/rear

    Basic version

    Basic version

    Dimensions in mm

  • The best connectors
    deserve the best accessories.

    The best connectors
    deserve the best accessories.

    Discover how to make a great product even better

    Discover how to make a great product even better

  • SyntaxLock

    SyntaxLock

    SyntaxLock

    Patent pending

    Patent pending

    Suitable for all PowerSyntax connectors. Can be fitted or removed at any time. A simple, universal accessory. Quick and easy to install.

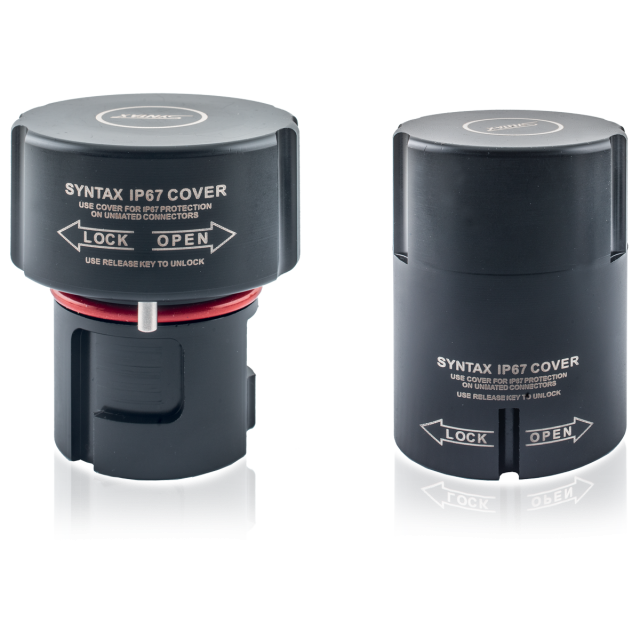

  • Protection caps IP67

    Protection caps IP67

    Protection caps IP67

    For IP67 waterproof protection

    For IP67 waterproof protection

    The PowerSyntax IP67 caps ensure complete waterproof protection and IP53 caps are a fast, easy way to protect connectors.
