Bimetal contacts

Bimetal
contacts

for aluminium cables.

Bimetal
contacts

for aluminium cables.

SPY EasiLug and SPV Bimetal
480 Amp or 750 Amp

  • SPY EasiLug

    SPY EasiLug

    A contact and lug system for aluminium cables

    A contact and lug system for aluminium cables

    SPY EasiLug
  • SPY EasiLug is a quick, safe and easy means to fit lug terminal single core aluminium cables into a classical PowerSyntax single pole connector. It combines the reliability of a lug termination cable with the convenience of a PowerSyntax connector. The result is an IP67 waterproof terminal block, which also enables to disconnect the line without need of any tools (this operation must be carried out in absence of voltage).


  • Advantages
    Super quick assembly
    Versions available for cables up to 300 mm²
    Reusable to fit cables with different lengths
    Grants electrical safety and easy phase identification without the need of other devices
    Greater versatility than any other high power single pole connection
    Lug terminal cables directly fitted into mechanically keyed, color coded PowerSyntax connectors
    Less maintenance than cables fitted with set screws/sleeve systems, or crimped cables
    Standardises the single pole connections, using the same connector’s body as SPX/SPZ with crimp or set screw contacts
    Quick connect cables with lug terminals into power distro devices equipped with PowerSyntax panel-mount connectors

  • Assembling instructions

    Assembling instructions

  • Side view

    Side view

    Side view
  • Bottom view

    Bottom view

    Bottom view

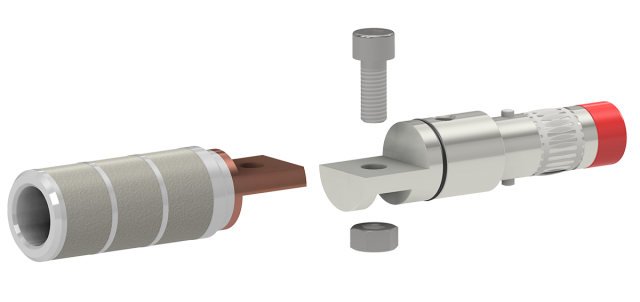

  • 1. Socket button head screw - 2. Conical washer - 3. Screw nut

    1. Socket button head screw - 2. Conical washer - 3. Screw nut

    - Apply on the thread of Screw 1 some anti-seize lubricant such as Loctite LB 8013 (also known as N-7000) or similar product
    - Insert Conical Washer 2 in Screw 1, with the knurled side facing outwards
    - Insert Nut 3 in the recess on the bottom of the contact, the side with the three circular indentures must face outwards
    - Connect the lug termination element and the contact by screwing 1, 2 and 3 together in the holes of the contact and of the lug termination
    - Apply a maximum torque of 20Nm until the screw reaches the end

  • EasiLug aluminium terminal
    crimping specifications

    EasiLug aluminium terminal
    crimping specifications


    Cable section (class 5)120 mm2150 mm2185 mm2240 mm2300 mm2
    Contact internal Ø15 mm16,5 mm18,5 mm21,3 mm23,3 mm
    Cable strip length60 mm60 mm60 mm60 mm60 mm
    No. of crimpings33333
    Crimping width14 mm14 mm14 mm17 mm17 mm
    Crimp die set p/nSBH-CRIMP-120ALSBH-CRIMP-150ALSBH-CRIMP-185ALSBH-CRIMP-240ALSBH-CRIMP-300AL

  • SPV Bimetal

    SPV Bimetal

    Aluminum/copper bimetal contact for aluminium cable

    Aluminum/copper bimetal contact
    for aluminium cable

    The bimetallic contacts are obtained by friction welding of aluminium and copper as raw materials. The crimp terminals are made of aluminium to allow corrosion-free termination on to aluminum cables.

  • Since the PowerSyntax connectors were first introduced on the market, they have been used in a number of different applications from events to mobile generators to backup power systems. As well as improved safety compared to previous standards, for most users one of the main advantages of the PowerSyntax has been its quick and easy connection. SPX and SPZ standard PowerSyntax connectors are suitable to be used with various copper cable sections. For some applications, though, there has been a demand that these connectors may be used with aluminum cable. However, as the standard PowerSyntax connectors feature copper or copper based contacts, they should not be used for direct termination on to aluminum cables as galvanic corrosion and overheating may occur. The aluminum/copper bimetal contact of the SPV allows the use of the PowerSyntax connectors with aluminum cable, combining the advantages of this type of connection with the lighter weight associated with aluminum cable.

  • SPV 120 - 240 mm² | Line drain

    SPV 120 - 240 mm² | Line drain

    SPV 120 - 240 mm² | Line drain

    480amp Drain contact | Crimp termination | For cable up to 240 mm²

  • SPV 120 - 240 mm² | Line source

    SPV 120 - 240 mm² | Line source

    SPV 120 - 240 mm² | Line source

    480amp Source contact | Crimp termination | For cable up to 240 mm²

  • SPV aluminium lug terminal crimping specifications

    SPV aluminium lug terminal crimping specifications


    Lug model120 mm2150 mm2185 mm2240 mm2300 mm2
    Contact internal Ø15 mm16,5 mm18,5 mm21,3 mm23,3 mm
    Cable strip length (L)42 mm42 mm42 mm42 mm42 mm
    No. of crimpings22222
    Crimping width14 mm14 mm14 mm17 mm17 mm
    Crimp die set p/nSBH-CRIMP-120ALSBH-CRIMP-150ALSBH-CRIMP-185ALSBH-CRIMP-240ALSBH-CRIMP-300AL
