S2W 480amp PowerSyntax multiplier
S2W with 1 drain | 2 source Syntax® PowerSyntax 480amp connectors. Available with EU, UK, AUS and USA color coding. Standard and reverse versions are available. The reverse version differs from the standard only for the position where the input connector is assembled (on the reverse version, the input is inline with one of the outputs).
-
-
Example p/n - EU color coding
1 input male color 2 output female color p/n Line 1 Line 1 S2WX111000S Line 2 Line 2 S2WX222000S Line 3 Line 3 S2WX333000S Neutral Neutral S2WXNNN000S Ground Ground S2WXGGG000S
Notice:
- for the reverse version replace final “S” by “R” in the p/n.
- for the version with safety lacing add “-L” at the end of the p/n.
- IP67 or IP53 protection caps available on request. -

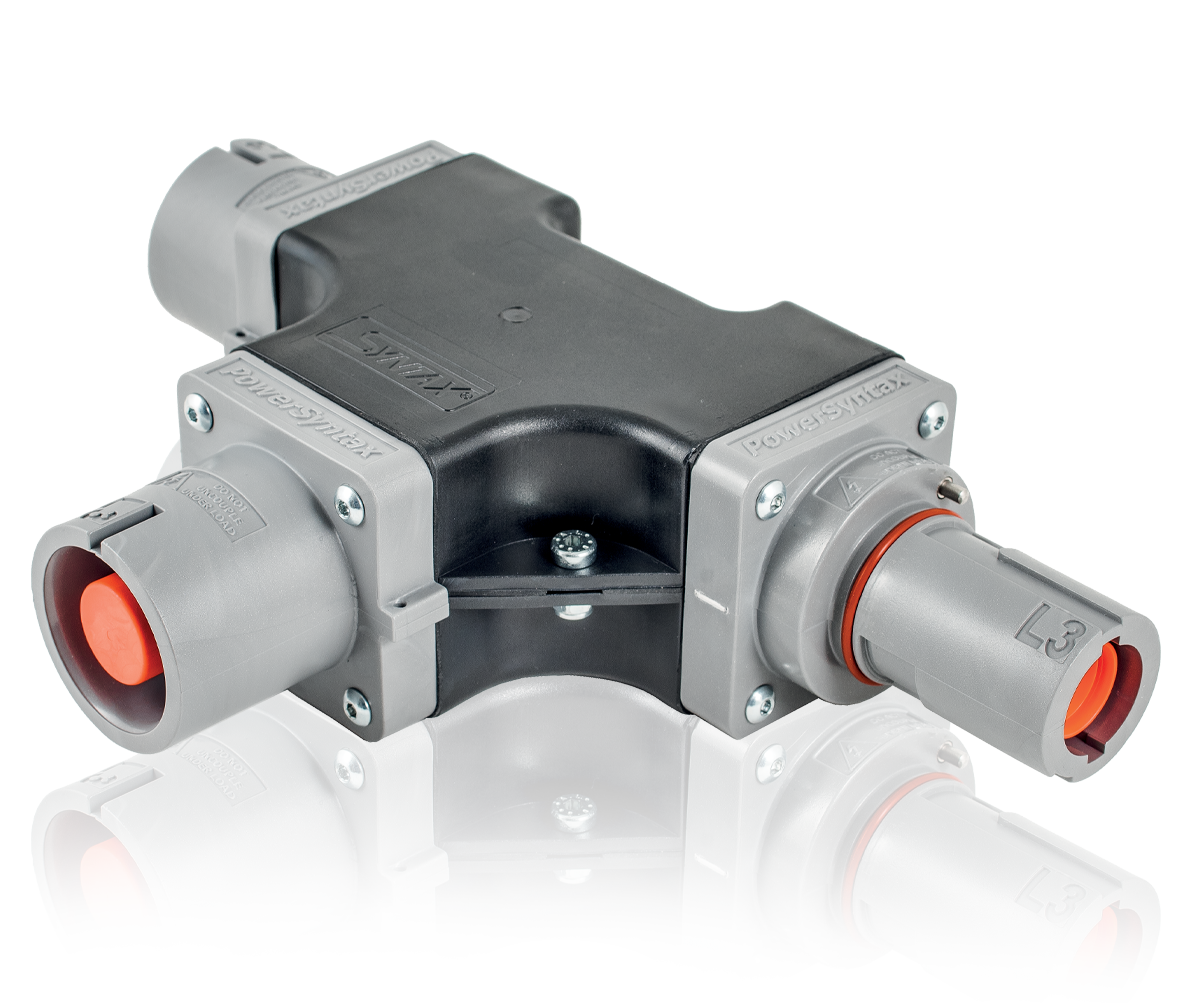

S2W 480amp PowerSyntax
Phase Inverter/Adaptor/Multiplier
The PowerSyntax Phase Inverters/Adaptors (up to 480A have been designed to solve two specific problems:
- reverse the rotation direction in 3-phase motors, etc. by changing the phase sequence (L1-L2-L3) between the power source and the connected devices;
- provide those who use only one model of phase conductor (L1, L2 or L3) to operate L1-L2-L3+Neutral systems with an interface between standard three-phase power generators/distros and their devices.
The former is a common demand in industrial applications. The latter is a specific need of entertainment and cinema industries.Standard and reverse versions are available (standard versions in the photo). The reverse version differs from the standard only for the position where the input connector is assembled (on the reverse version, the INPUT is inline with one of the outputs). -
-
Available versions and p/n
1 input male color 2 output female color p/n Line 1 Line 3 S2WX133000S Line 2 Line 3 S2WX233000S Line 3 Line 2 S2WX322000S Line 1 Line 2 S2WX122000S Line 2 Line 1 S2WX211000S Line 3 Line 1 S2WX311000S
Notice:
- for the reverse version replace final “S” by “R” in the p/n.
- for the version with safety lacing add “-L” at the end of the p/n.
- IP67 or IP53 protection caps available on request. -
-
Typical applications
All temporary electrical systems
Power distribution
Outdoor concerts and sports events
Outdoor broadcasting
Theaters, studios and film sets
Mobile generators
Industrial vehicles
Railway and military installations
Load banks
Back-up power systems -
Drain contact
IP2X safety lock
-
Our innovative mechanical lock prevents improperly pushing the contact inwards with fingers or tools !
-
