Crimping data

Crimping data

and cable stripping

Crimping data

and cable stripping

On crimp contacts (up to 750amp copper / 480amp bimetal, and up to up to 300 mm cable sections), the position and number of cable compressions very according to the different cable sections (see tables below).

  • Aluminium cables - SPY EasiLug

    Aluminium cables - SPY EasiLug

    Aluminium cables - SPY EasiLug

    Class 5

    Class 5


    Lug model120 mm2150 mm2185 mm2240 mm2300 mm2
    Contact internal 15 mm16,5 mm18,5 mm21,3 mm23,3 mm
    Cable strip length (L)60 mm60 mm60 mm60 mm60 mm
    No. of crimpings33333
    Crimping width14 mm14 mm14 mm17 mm17 mm
    Crimp die set p/nSBH-CRIMP-120ALSBH-CRIMP-150ALSBH-CRIMP-185ALSBH-CRIMP-240ALSBH-CRIMP-300AL

  • Crimp in the middle of each crimping area, inside the guides.

    Crimp in the middle of each crimping area, inside the guides.

  • Aluminium cables - SPV

    Aluminium cables - SPV

    Aluminium cables - SPV

    Class 5

    Class 5


    Lug model120 mm2150 mm2185 mm2240 mm2300 mm2
    Contact internal 15 mm16,5 mm18,5 mm21,3 mm23,3 mm
    Cable strip length (L)42 mm42 mm42 mm42 mm42 mm
    No. of crimpings22222
    Crimping width14 mm14 mm14 mm17 mm17 mm
    Crimp die set p/nSBH-CRIMP-120ALSBH-CRIMP-150ALSBH-CRIMP-185ALSBH-CRIMP-240ALSBH-CRIMP-300AL

  • Crimp in the middle of each crimping area, inside the guides.

    Crimp in the middle of each crimping area, inside the guides.

  • Copper cables - SPX

    Copper cables - SPX

    Copper cables - SPX

    Class 5

    Class 5


    Contact model source / drain150 mm2185/240 mm2240/300 mm2300 mm2
    Contact internal 17,9 mm19,7 mm22,2 mm23,7 mm
    Cable strip length (L)42 mm42 mm42 mm42 mm
    No. of crimpings2233
    Crimping width (mm)141477
    Crimp die set (p/n)SBH-CRIMP-185/240RMSBH-CRIMP-185/240RMSBH-CRIMP-240/300RMSBH-CRIMP-240/300RM

  • Crimp in the middle of each crimping area, inside the guides.

    Crimp in the middle of each crimping area, inside the guides.

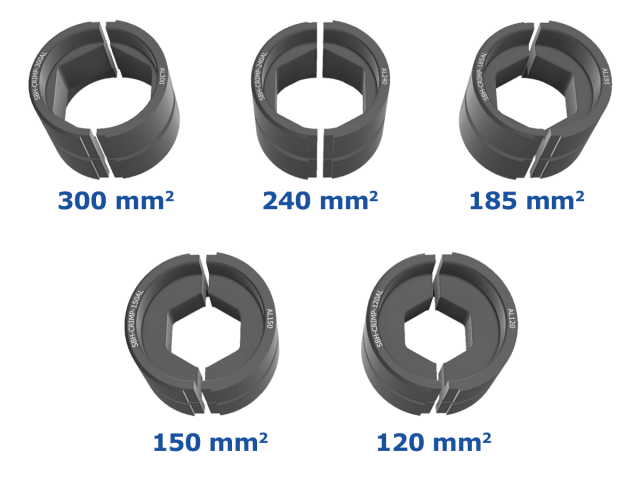

  • Aluminium

    Aluminium

    Aluminium

    Crimp die set

    Crimp die set

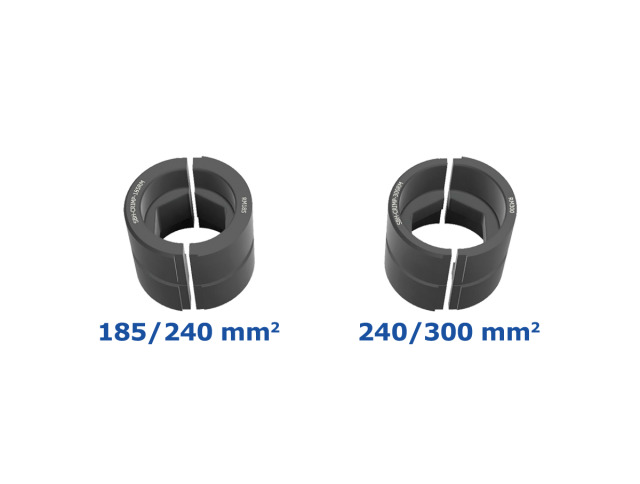

  • Copper

    Copper

    Copper

    Crimp die set

    Crimp die set

  • Hand operated hydraulic   crimp tool

    Hand operated hydraulic
    crimp tool

    Hand operated hydraulic
    crimp tool

    SBH-CRIMP-B

    SBH-CRIMP-B

  • Cordless hydraulic   crimp tool

    Cordless hydraulic
    crimp tool

    Cordless hydraulic
    crimp tool

    SBH-CRIMP-C

    SBH-CRIMP-C
